sklearn intro

Classification, Clustering and Regression
fastpages
jupyter
Published

November 28, 2021

Repeating the contents of http://appliedprogramming.net/machine-learning/introduction.html

import pandas as pd
import numpy as np
import seaborn as sns
from matplotlib import pyplot as plt
from sklearn import datasets

import warnings
warnings.filterwarnings('ignore')

Supervised classification

iris = datasets.load_iris()
x_iris, y_iris = iris.data, iris.target
print(f'x.shape: {x_iris.shape}, y.shape - {y_iris.shape}')
x.shape: (150, 4), y.shape - (150,)
from sklearn.preprocessing import StandardScaler
from sklearn.model_selection import train_test_split
from sklearn.pipeline import Pipeline
from sklearn.linear_model import SGDClassifier
x_train, x_test, y_train, y_test = train_test_split(x_iris[:,:2], y_iris, test_size=0.25, random_state=33)

# scale the features
scaler = StandardScaler()
x_train = scaler.fit_transform(x_train)
labels = [iris.target_names[o] for o in y_train]

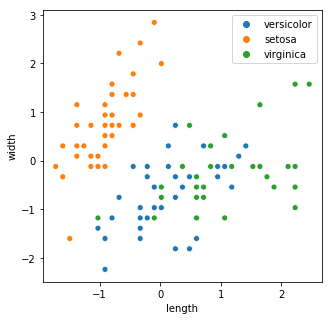

fig, ax = plt.subplots(figsize=((5,5)))
sns.scatterplot(x_train[:,0], x_train[:, 1], hue=labels)
ax.set_xlabel('length')
ax.set_ylabel('width')
Text(0,0.5,'width')

classifier = SGDClassifier()
classifier
SGDClassifier(alpha=0.0001, average=False, class_weight=None, epsilon=0.1,
       eta0=0.0, fit_intercept=True, l1_ratio=0.15,
       learning_rate='optimal', loss='hinge', max_iter=None, n_iter=None,
       n_jobs=1, penalty='l2', power_t=0.5, random_state=None,
       shuffle=True, tol=None, verbose=0, warm_start=False)
classifier.fit(x_train, y_train)
SGDClassifier(alpha=0.0001, average=False, class_weight=None, epsilon=0.1,
       eta0=0.0, fit_intercept=True, l1_ratio=0.15,
       learning_rate='optimal', loss='hinge', max_iter=None, n_iter=None,
       n_jobs=1, penalty='l2', power_t=0.5, random_state=None,
       shuffle=True, tol=None, verbose=0, warm_start=False)
classifier.coef_
array([[-31.5436696 ,  25.922051  ],
       [  7.45335653, -10.85334472],
       [ 19.25894089,   7.53435314]])

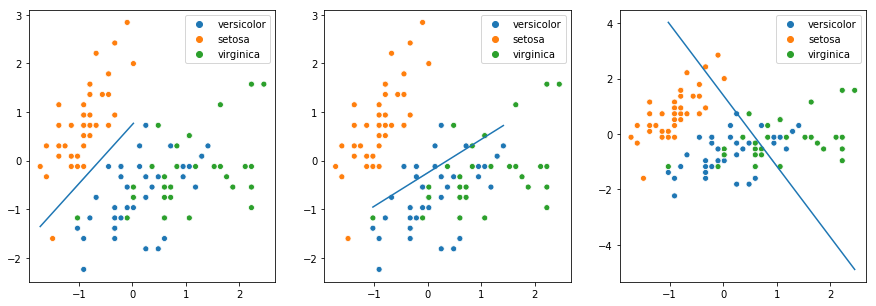

The classifier learnt coefficients for 3 planes, as it does a one-vs-many classification. Let us plot these planes

x_min, x_max = x_train[:,0].min() - 0.5, x_train[:,0].max() + 0.5
y_min, y_max = x_train[:,1].min() - 0.5, x_train[:,1].max() + 0.5
def plot_x(idx, ax):
    xs = x_train[:,0][y_train == idx]
    ys = (-classifier.intercept_[idx]-xs*classifier.coef_[idx,0])/classifier.coef_[idx,1]
    sns.scatterplot(x_train[:,0], x_train[:,1], hue=labels, ax=ax)
    sns.lineplot(xs, ys, ax=ax)

fig, axs = plt.subplots(1, 3, figsize=(15,5))
for idx in range(len(iris.target_names)):
    plot_x(idx, axs[idx])

Evaluating our results

from sklearn import metrics
y_pred = classifier.predict(x_test)

print(f'accuracy - {metrics.accuracy_score(y_test, y_pred)}')
accuracy - 0.5
print(metrics.classification_report(y_test, y_pred, target_names=iris.target_names))
             precision    recall  f1-score   support

     setosa       0.00      0.00      0.00         8
 versicolor       0.00      0.00      0.00        11
  virginica       0.50      1.00      0.67        19

avg / total       0.25      0.50      0.33        38

print(metrics.confusion_matrix(y_test, y_pred))
[[ 0  0  8]
 [ 0  0 11]
 [ 0  0 19]]

Cross Validation

from sklearn.cross_validation import cross_val_score, KFold

clf = Pipeline([
    ('scaler', StandardScaler()),
    ('linear_model', SGDClassifier())
])

# create a kfold cross validation iterator
cv = KFold(x_iris.shape[0], n_folds=5, shuffle=True, random_state=33)
cv
sklearn.cross_validation.KFold(n=150, n_folds=5, shuffle=True, random_state=33)
scores = cross_val_score(clf, x_iris, y_iris, cv=cv)
scores
array([0.86666667, 0.86666667, 0.93333333, 1.        , 0.9       ])

Clustering

x_train, x_test, y_train, y_test = train_test_split(x_iris, y_iris, test_size=0.25)

scaler = StandardScaler().fit(x_train)
x_train = scaler.transform(x_train)
x_test = scaler.transform(x_test)
from sklearn import cluster
clf_sepal = cluster.KMeans(init='k-means++', n_clusters=3, random_state=33)
clf_sepal.fit(x_train[:, 0:2])
KMeans(algorithm='auto', copy_x=True, init='k-means++', max_iter=300,
    n_clusters=3, n_init=10, n_jobs=1, precompute_distances='auto',
    random_state=33, tol=0.0001, verbose=0)

Print the labels assigned

print(clf_sepal.labels_)
[1 0 0 1 1 2 0 0 0 2 0 1 2 1 0 0 2 1 2 2 0 0 0 2 2 1 0 1 2 0 1 2 2 2 1 0 1
 0 2 1 2 2 0 0 0 0 2 1 2 1 2 2 2 0 1 0 0 0 2 0 0 1 2 1 2 0 0 0 2 0 2 2 2 0
 0 2 0 1 1 2 0 2 1 1 2 2 1 0 1 0 0 0 2 1 0 2 0 1 2 1 1 2 0 0 0 0 0 1 2 2 0
 1]
colormarkers = [['red', 's'], ['greenyellow', 'o'], ['blue', 'x']]
step = 0.01
margin = 0.1
sl_min, sl_max = x_train[:, 0].min() - margin, x_train[:, 0].max() + margin
sw_min, sw_max = x_train[:, 1].min() - margin, x_train[:, 1].max() + margin

# meshgrid returns two vectors one for x and y of length xy, which reprsent coordinates for the xy points.
sl, sw = np.meshgrid(np.arange(sl_min, sl_max, step),
                     np.arange(sw_min, sw_max, step))
zs = clf_sepal.predict(np.c_[sl.ravel(), sw.ravel()]).reshape(sl.shape)
centroids_s = clf_sepal.cluster_centers_

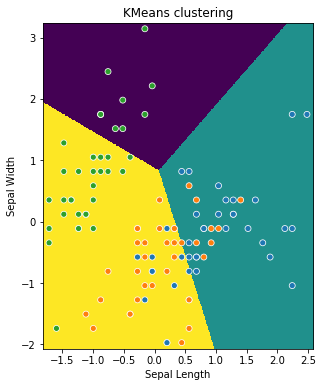

Display the data points and the calculated regions

fig, ax = plt.subplots(figsize=(6,6))
ax.imshow(zs, interpolation='nearest',  extent=(sl.min(), sl.max(), sw.min(), sw.max()))
ax.set_xlim(sl_min, sl_max)
ax.set_ylim(sw_min, sw_max)
ax.set(xlabel='Sepal Length', ylabel='Sepal Width', title='KMeans clustering')
hues = [colormarkers[o][0] for o in y_train]
markers = [colormarkers[o][1] for o in y_train]
sns.scatterplot(x_train[:,0], x_train[:,1], hue=hues, markers=markers, legend=False)

Supervised Learning: Regression

from sklearn.datasets import load_boston
from sklearn.linear_model import SGDRegressor
boston = load_boston()
print(f'shape - {boston.data.shape}')
print(f'boston feature names - {boston.feature_names}')
shape - (506, 13)
boston feature names - ['CRIM' 'ZN' 'INDUS' 'CHAS' 'NOX' 'RM' 'AGE' 'DIS' 'RAD' 'TAX' 'PTRATIO'
 'B' 'LSTAT']
x_train = boston.data
y_train = boston.target
x_train = StandardScaler().fit_transform(x_train)
y_train = StandardScaler().fit_transform(np.expand_dims(y_train, axis=1))
y_train.shape
(506, 1)
import sklearn
def train_and_evaluate(model, x_train, y_train, folds):
    model.fit(x_train, y_train)
    print(f'score on training set {model.score(x_train, y_train):.2f}')
    cv = sklearn.cross_validation.KFold(x_train.shape[0], folds, shuffle=True, random_state=33)
    scores = sklearn.cross_validation.cross_val_score(model, x_train, y_train, cv=cv)
    print(f'Avg score using {folds} cross validation {np.mean(scores):.2f}')
model = SGDRegressor(loss='squared_loss', penalty='l2', random_state=33)
train_and_evaluate(model, x_train, y_train, 5)
score on training set 0.73
Avg score using 5 cross validation 0.70
